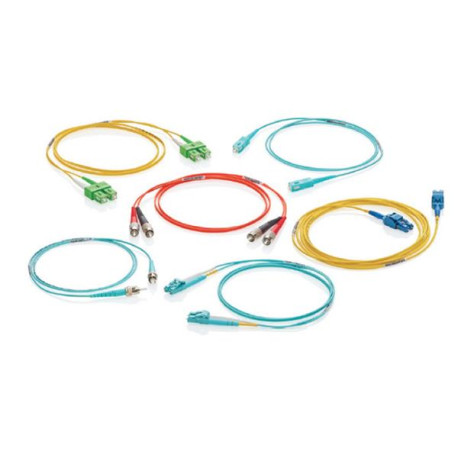

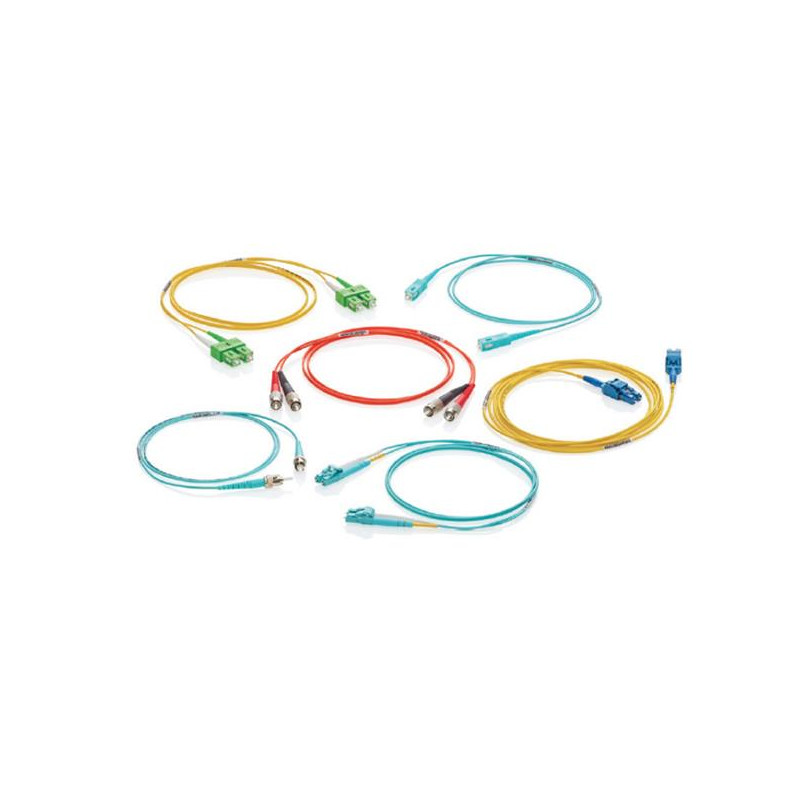

Leviton VPC-S2D1LCSC0030

1.6mm, SM OS2, 3m, Yellow APPLICATIONFiber Optic Patch Cords are designed to interconnect, or cross-connect fiber networks within structured cabling systems for data centers, Broadband CATV, Passive Optical Networks (PON), WDM or DWDM multiplexing, FTTH, and voice services in ATM and SONET metropolitan and access networks. Common connector patch cord configurations in 1, 2, 3, 5, and 10-meter lengths are stocked for quick service,while hybrid connector combinations, custom lengths, low loss, and custom color patch cords are made to order. Contact customer service for details.Patch cords shall be compliant with ANSI/TIA-568.3-D. Standard insertion loss shall be a maximum of 0.25 dB for multimode and single-mode. Low loss shall be a maximum of 0.15 dB for multimode and single-mode connectors. Multimode return loss shall be greater than 26 dB and greaterthan 50 dB for single UPC mode connectors. Single-mode angled physical contact connectors (APC) shall have a minimum of 60 dB return loss. Patch cords shall have a pull force of at least 50 N per IEC 61300-2-4. Connector durability of greater than 500 matings for both multimode and singlemode. Patch cord shall be LSHF (Low Smoke Halogen Free), HFFR-LS (Halogen-Free Flame-Retardant Low-Smoke) rated. Patch cords shall be individually packaged with part numbers, descriptions, optical performance, code 39 barcode part number printed on each package, and QR code to access supporting documentation. Patch cords shall include wrap labels including length, end designation, and serial number, providing traceability to factory collected test data.
